56384D Hinge Rubber Pellet Assembly Equipment

# 1. Project Background

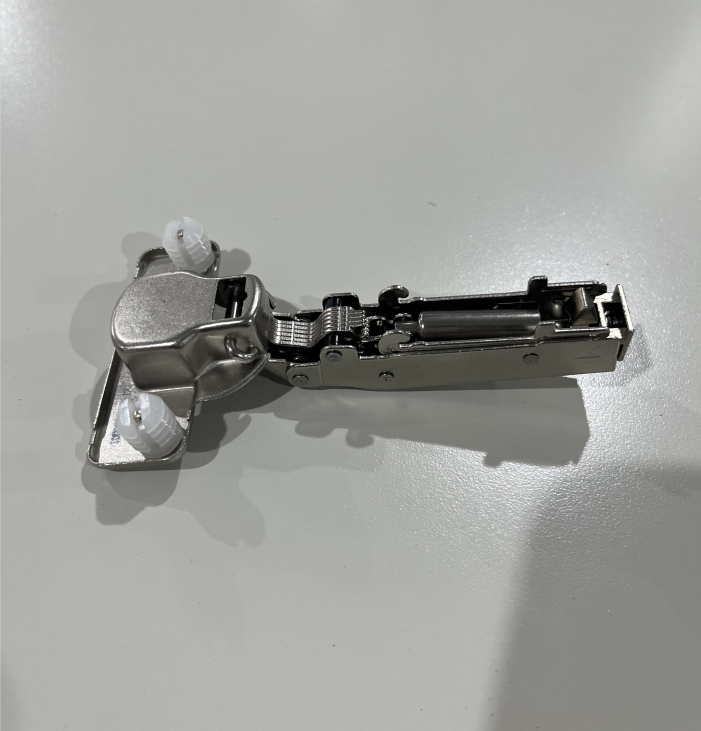

Hinges are manually loaded. Rubber pellets are automatically fed by a vibrating plate, screws are automatically fed and tightened, and finished products are automatically unloaded.

# 2. Equipment Introduction
1. Overall equipment cycle time ≤ 2.5s;
2. Single shift output: 10,260 PCS per shift (working time for one shift: 450 min)
3. Equipment footprint: 2000mm * 1350mm
4. Equipment operator: 1 person

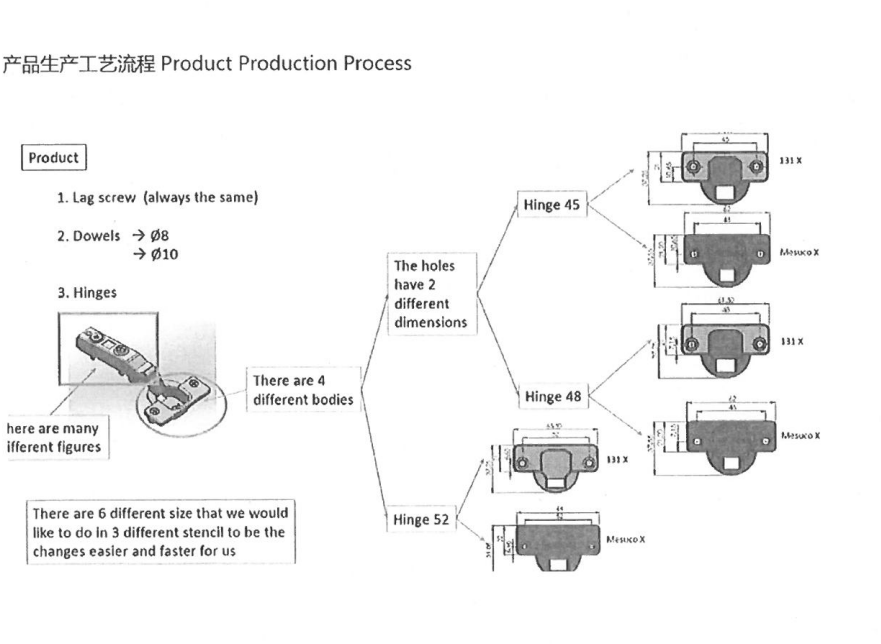

产品生产工艺流程：

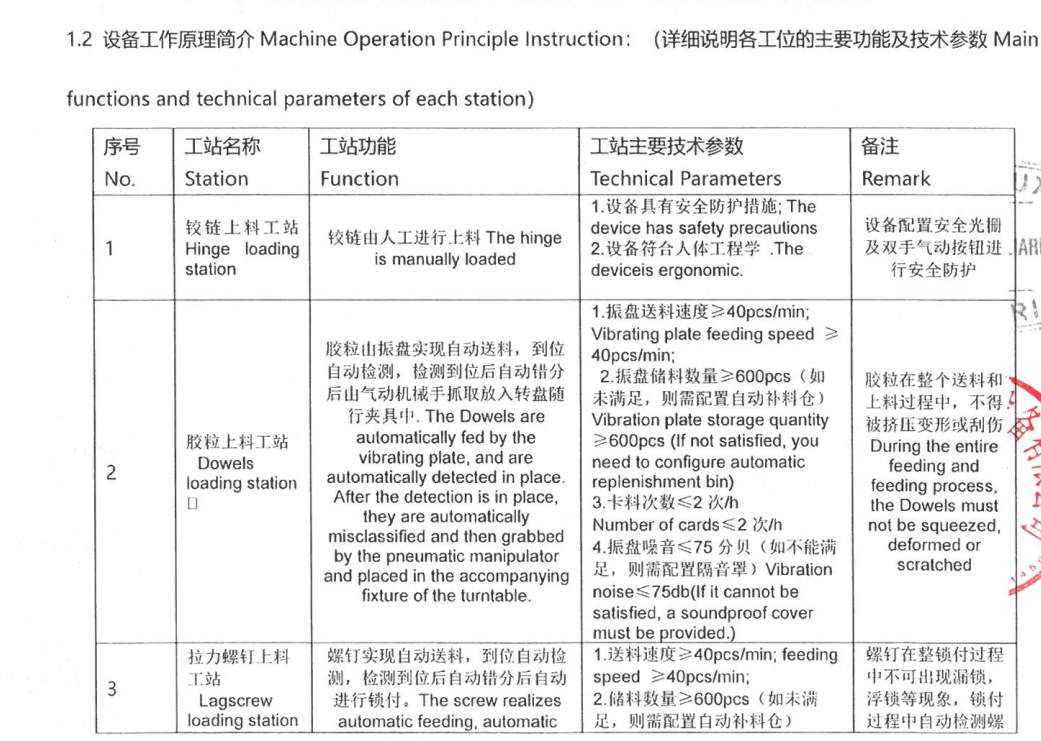

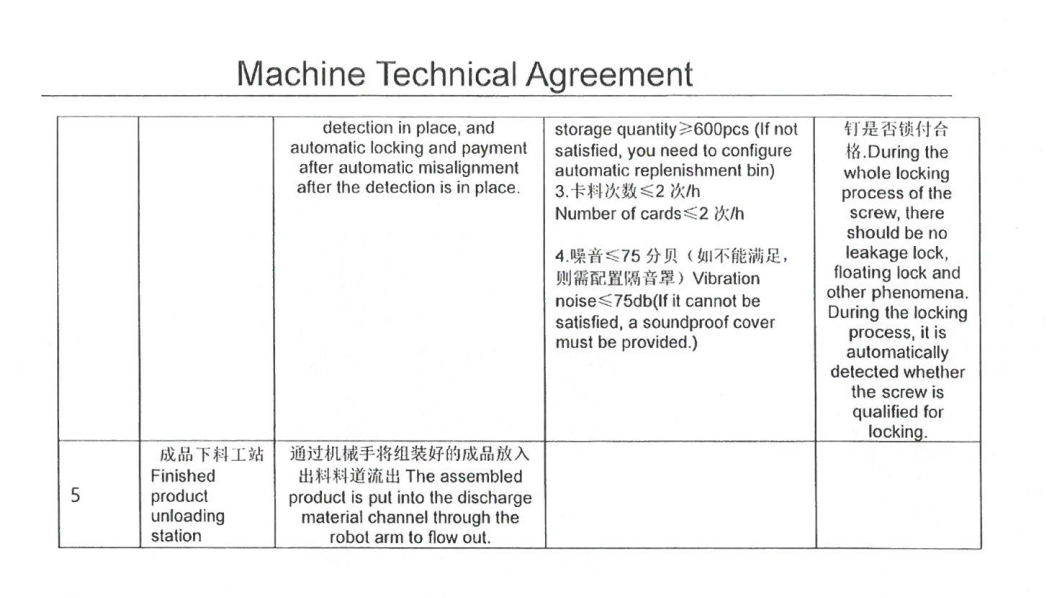

设备工作原理：

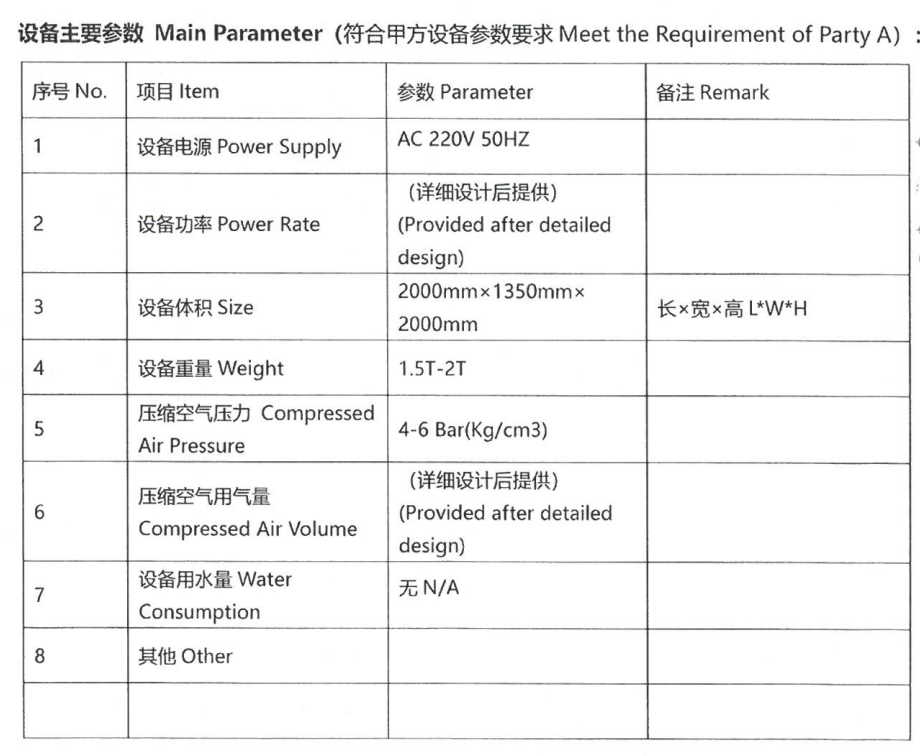

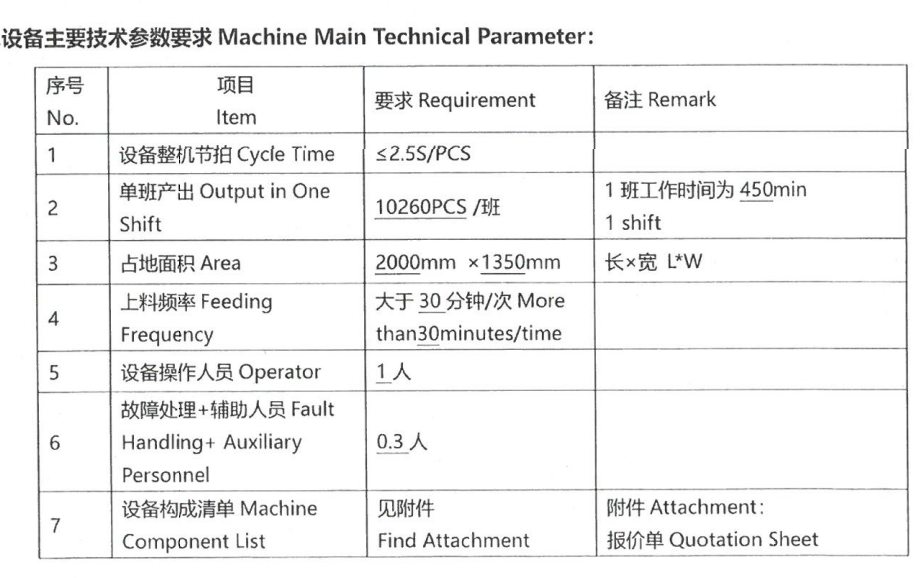

设备主要技术参数要求：

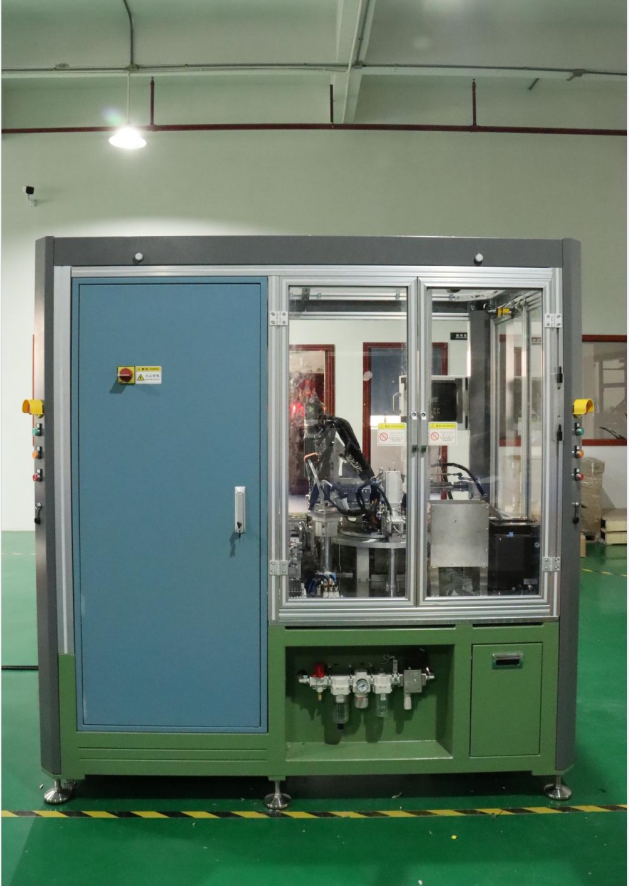

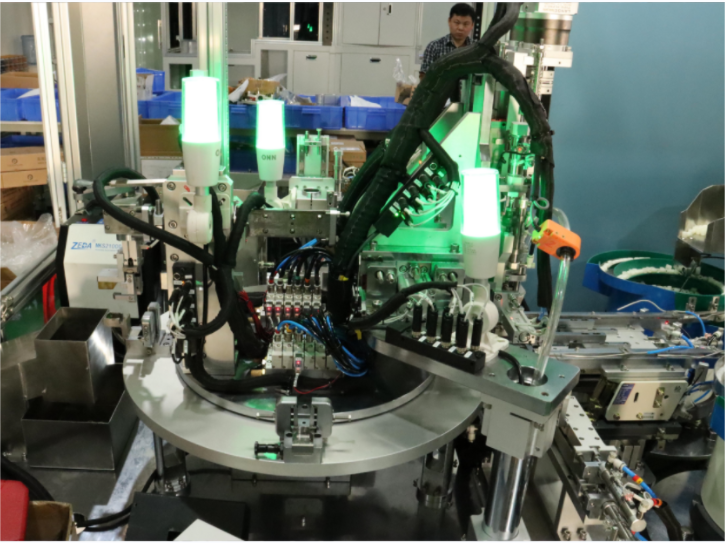

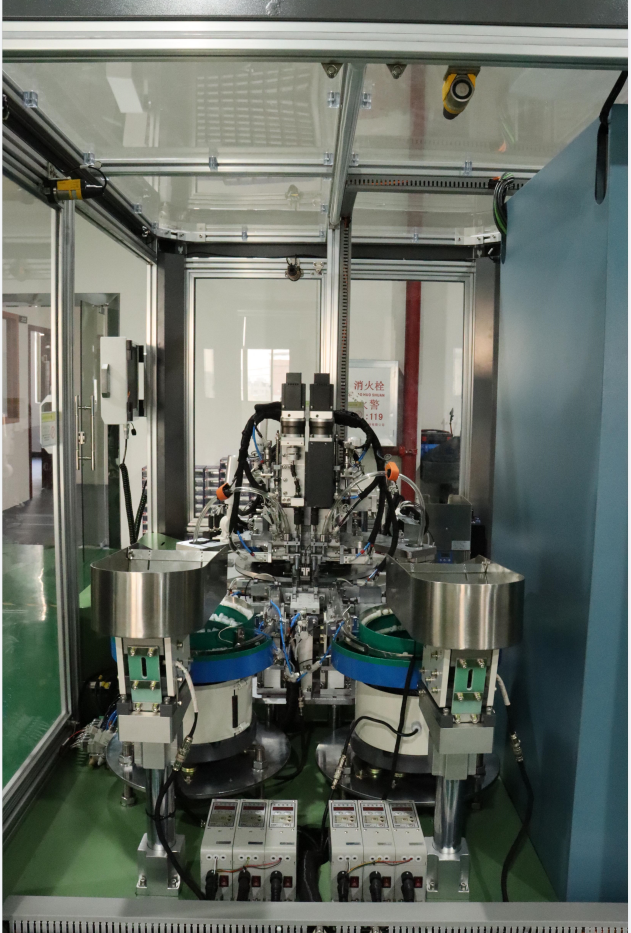

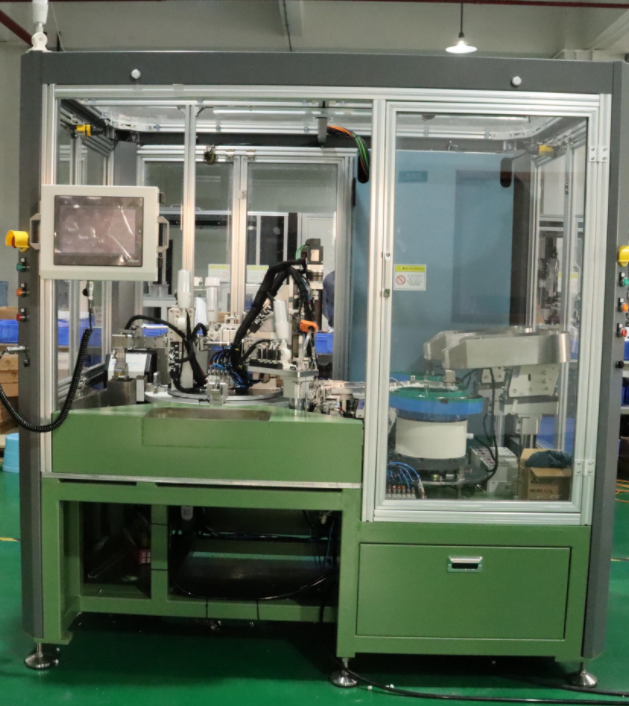

设备实拍图：
