Coil Bobbin Feeding Equipment

Launch of Automatic Coil Bobbin Feeding Equipment

Automatic feeding replaces manual material placement, cutting manual workstations and labor costs.

It delivers consistent and stable material supply, matching winding and assembly production lines to boost the overall output of the entire line.

Materials are fed in order without jamming, reducing downtime caused by material shortage and improving equipment availability.

Compatible with multiple specifications of coil bobbins; one single machine supports the production of various product models.

Low operational failure rate and low maintenance cost during long-term production.

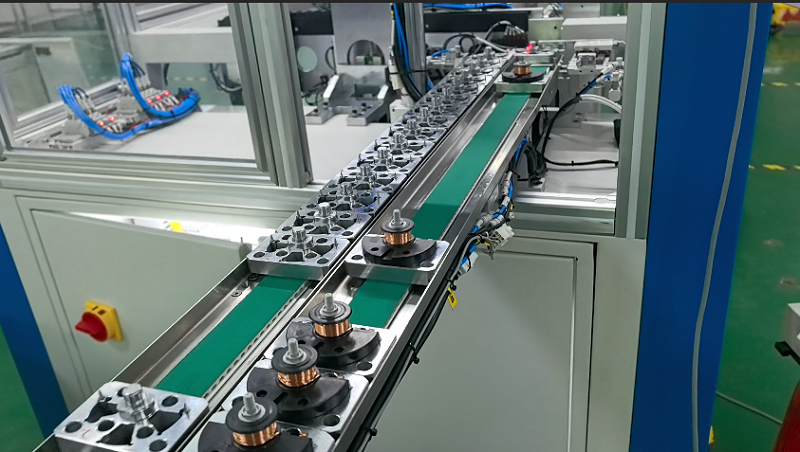

         The coil bobbin feeding equipment is an automated auxiliary device in coil production. Its core function is to replace manual labor to realize automatic feeding of coil bobbins. Generally, it picks up or conveys bobbins from silos, trays or material strips, and accurately transports the bobbins to designated stations such as the feeding ports of winding machines and assembly machines via conveyor belts, manipulators or vibrating feeding mechanisms. The equipment can adapt to coil bobbins of different sizes and shapes, and achieve rapid model change through parameter adjustment. Meanwhile, it is equipped with positioning and calibration functions to guarantee accurate feeding positions of bobbins. Ultimately, it improves production efficiency, reduces labor costs and cuts down positioning errors caused by manual operation.
