Product Features
Basic Technical Parameters

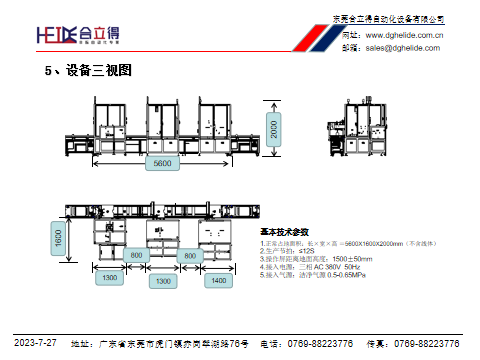

1. Normal Floor Space: Length × Width × Height = 5600×1600×2000mm (excluding production line)
2. Production Cycle: ≤12S
3. Height of Operation Screen from Ground: 1500±50mm
4. Power Supply: Three-phase AC 380V, 50Hz
5. Air Supply: Clean compressed air, 0.5-0.65MPa

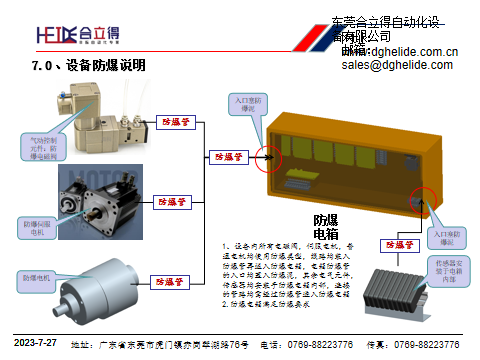

(1. All solenoid valves, servo motors and ordinary motors inside the equipment shall be explosion-proof type. All circuits shall be routed through explosion-proof conduits into explosion-proof electrical boxes. Explosion-proof sealing compound shall be filled at the inlets of explosion-proof conduits on electrical boxes. All other electrical components and sensors shall be installed inside explosion-proof electrical boxes, and all connected pipelines shall enter the explosion-proof electrical boxes via explosion-proof conduits.
2. Explosion-proof electrical boxes shall comply with explosion-proof requirements.)
